產品詳情

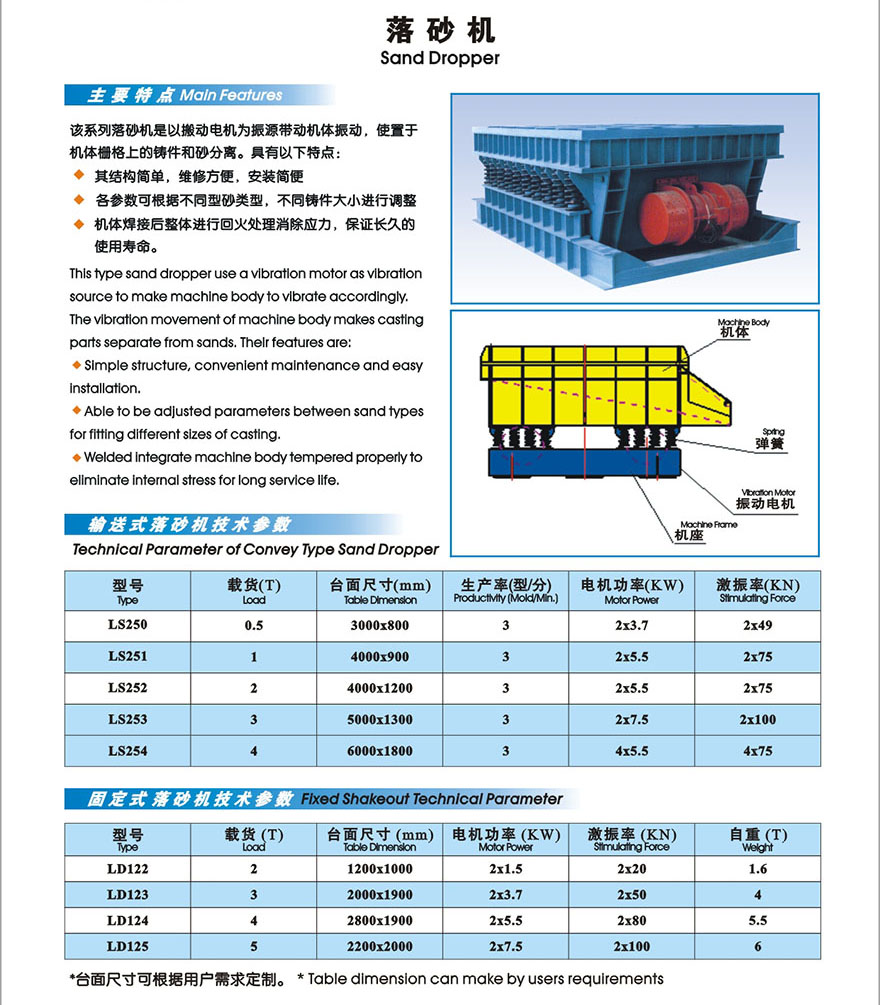

振動落砂機(Vibratory Shakeout Machine)
該落砂機是以振動電機為振源帶動機體振動，使置于機體柵格上的鑄件和砂分離。
The Vibratory Shakeout Machine shakes by its shaking engine to separate foundry from sand on the grate of the machine.
具有以下特點 ：
The characteristics are as follows:
l 其結構簡單，維修方便，安裝簡便。
l Simple in structure, convenient to maintain, and easy to install.
l 各參數可根據不同型砂類型，不同鑄件大小進行調整。
l All statistics are adjustable according to different types & foundry sizes.
l 機體焊接后整體進行回火處理消除應力，保證長久使用壽命。
l After welding the body of the machine, tempering must be conducted to diminish thermal stress to ensure its longevity.
輸送式落砂機技術參數
Technical References of Vibratory Shakeout Machine:
型號
(Type) |
載貨（T） |
臺面尺寸
（mm） |
生產率
（型/分） |
電機功率
（KW） |
激振率
（KN） |
|
ZXLS250 |
0.5 |
3000×800 |
3 |
2×3.7 |
2×49 |
|
ZXLS251 |
1 |
4000×900 |
3 |
2×5.5 |
2×75 |
|
ZXLS252 |
2 |
4000×1200 |
3 |
2×5.5 |
2×75 |
|
ZXLS253 |
3 |
5000×1300 |
3 |
2×7.5 |
2×100 |
|
ZXLS254 |
4 |
6000×1800 |
3 |
4×5.5 |
4×75 |
固定式落砂機技術參數
Technical References of Stationary Shakeout Machine:
型號
(Type) |
載貨（T） |
臺面尺寸
（mm） |
電機功率
（KW） |
激振率
（KN） |
自重（T） |
|
ZXLD122 |
2 |
1200×1000 |
2×1.5 |
2×20 |
1.6 |
|
ZXLD123 |
3 |
2000×1900 |
2×3.7 |
2×50 |
4 |
|
ZXLD124 |
4 |
2800×1900 |
2×5.5 |
2×80 |
5.5 |
|
ZXLD125 |
5 |
2200×2000 |
2×5.5 |
2×800 |
6 |
|
ZXLD128 |
8 |
2800×2000 |
2×7.5 |
2×100 |
7 |
振動輸送機(Vibrating Conveyer)
振動輸送機適用于塊、粒狀物料輸送，在鑄造車間輸送型砂、新砂、熱舊砂、石灰石、碎石和焦碳等散狀物料，并可根據用戶要求將槽體制成全封閉結構以達到密封除塵。
Vibrating conveyor is suitable for conveying of piece and sand things. In foundry factory it can convey molding sand、new sand、hot sand、limestone、crumbling stone, coke and some crumbling materials. Meanwhile it can be made into fully airtight structure to get airtight dust-catcher。
The characteristics of Vibrating Conveyer are as follows:
Ø 該機具有結構簡單、壽命長、維護保養方便、噪聲小、使用可靠、振幅可調、能耗低等優點。
Ø Simple in constructer, longevity, maintenance-friendly, little noise, trustworthy, vibrating range adjustable, and low-consumption.
該機用兩個電機振動器，同步反向旋轉作動力源，調整可用偏心塊，可改變激振力的大小，以適應不同的生產率的需要。
Ø It contains two vibrating machines, whirling spontaneous oppositely as shaking source, and adjusting available eccentric chunk to change vibrating force, to adapt requirements of productive capacity.
Ø 該機器的外形尺寸可根據用戶需要進行設計，安裝方式也根據實際情況進行配制。
Ø The appearance can be designed to customer’s needs; installment also can be practically collocated.
振動輸送機參數：
Technical Reference of Vibrating Conveyer:
|
型號(Type) |
總長（m ） |
輸送能力（m3/h） |
功率（K w） |
|
ZXY344 |
3~6 |
1~20 |
1.1~3 |
|
ZXY345 |
3~8 |
20~40 |
1.1~4 |
|
ZXY346 |
3~10 |
40~70 |
1.1~4 |
|
ZXY348 |
3~8 |
70~100 |
2.2~4 |
